BS Steel Conduit and Fittings
Circular Box
EVT GI conduit circular box is designed for use to join steel conduits BS4568 and GI conduits BS31, allowing access for inspection, pulling and maintenance of wires and cables.
Product Introduction
◆ Application Type: BS 4568 / BS 31
◆ Material: Malleable Iron
◆ Finish: Galvanized
◆ Trade Size: 20mm, 25mm, 32mm, 3/4", 1" and 1-1/4"
Product Details
EVT GI conduit circular box is designed for use to join steel conduits BS4568 and GI conduits BS31, allowing access for inspection, pulling and maintenance of wires and cables. Conduit box comes with tapped hole at base for earth screw.
Conduit junction box is made from malleable iron with durable galvanized finish assuring excellent strength and long term use.
The electrical conduit box is available in various shapes with full range of directions and in different trade size. Metric threads 20mm, 25mm and 32mm are used for BS4568 conduits while imperial threads 3/4", 1" and 1-1/4" are for BS31 conduits.
The malleable conduit box will be supplied without covers or fixing screws unless ordered.
Reference and Packing

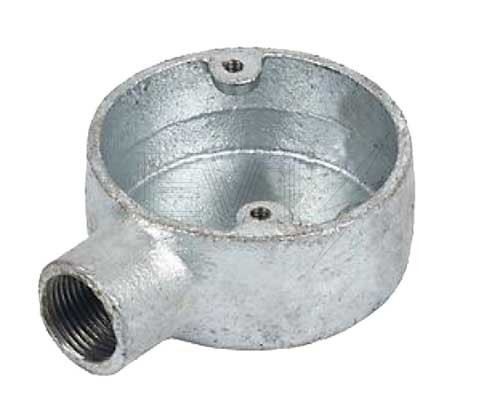

Terminal Box
EVT# | Trade Size | Packing QTY |
BS101 | 20mm | 100 |
BS102 | 25mm | 100 |
BS103 | 32mm | 50 |
3/4", 1" and 1-1/4" for BS31 conduits are also available upon request.

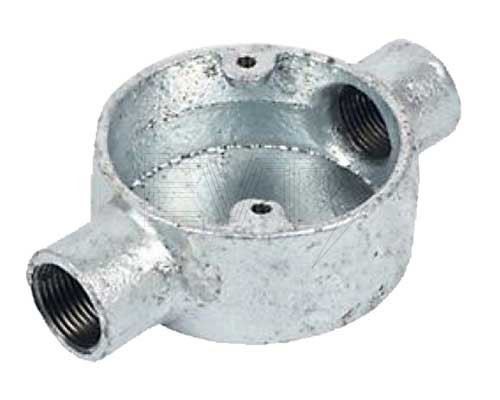

Through Box
EVT# | Trade Size | Packing QTY |
BS201 | 20mm | 100 |
BS202 | 25mm | 100 |
BS203 | 32mm | 50 |
3/4", 1" and 1-1/4" for BS31 conduits are also available upon request.

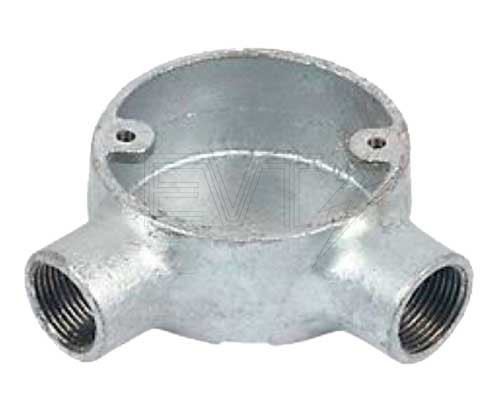

Angle Box
EVT# | Trade Size | Packing QTY |
BS211 | 20mm | 100 |
BS212 | 25mm | 100 |
BS213 | 32mm | 50 |
3/4", 1" and 1-1/4" for BS31 conduits are also available upon request.

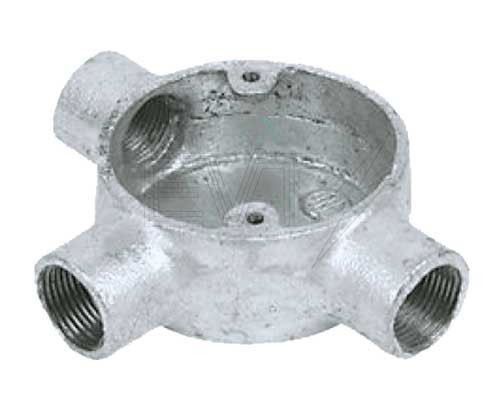

Tee Box
EVT# | Trade Size | Packing QTY |
BS301 | 20mm | 100 |
BS302 | 25mm | 100 |
BS303 | 32mm | 50 |
3/4", 1" and 1-1/4" for BS31 conduits are also available upon request.
Intersection Box
EVT# | Trade Size | Packing QTY |
BS401 | 20mm | 100 |
BS402 | 25mm | 100 |
BS403 | 32mm | 50 |
3/4", 1" and 1-1/4" for BS31 conduits are also available upon request.
Branch Two Way Box - U
EVT# | Trade Size | Packing QTY |
BS221 | 20mm | 100 |
BS222 | 25mm | 100 |
BS223 | 32mm | 50 |
3/4", 1" and 1-1/4" for BS31 conduits are also available upon request.
Branch Three Way Box - Y
EVT# | Trade Size | Packing QTY |
BS311 | 20mm | 100 |
BS312 | 25mm | 100 |
BS313 | 32mm | 50 |
3/4", 1" and 1-1/4" for BS31 conduits are also available upon request.
Twin Through Box - H
EVT# | Trade Size | Packing QTY |
BS411 | 20mm | 100 |
BS412 | 25mm | 100 |
BS413 | 32mm | 50 |
3/4", 1" and 1-1/4" for BS31 conduits are also available upon request.
For more details and more shapes of circular boxes, please visit https://www.evt-electrical.com/Content/uploads/2020579884/PDF/EVT_BS.pdf
