Strut Channel and Fittings
Abrazadera Caddy

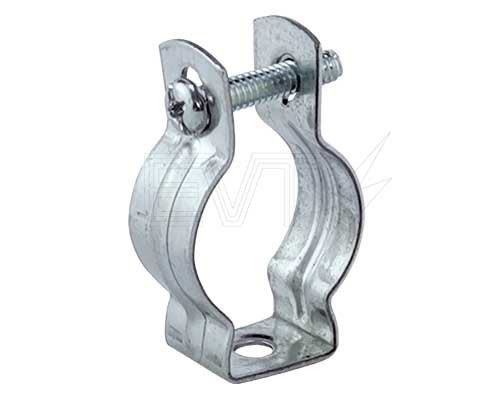

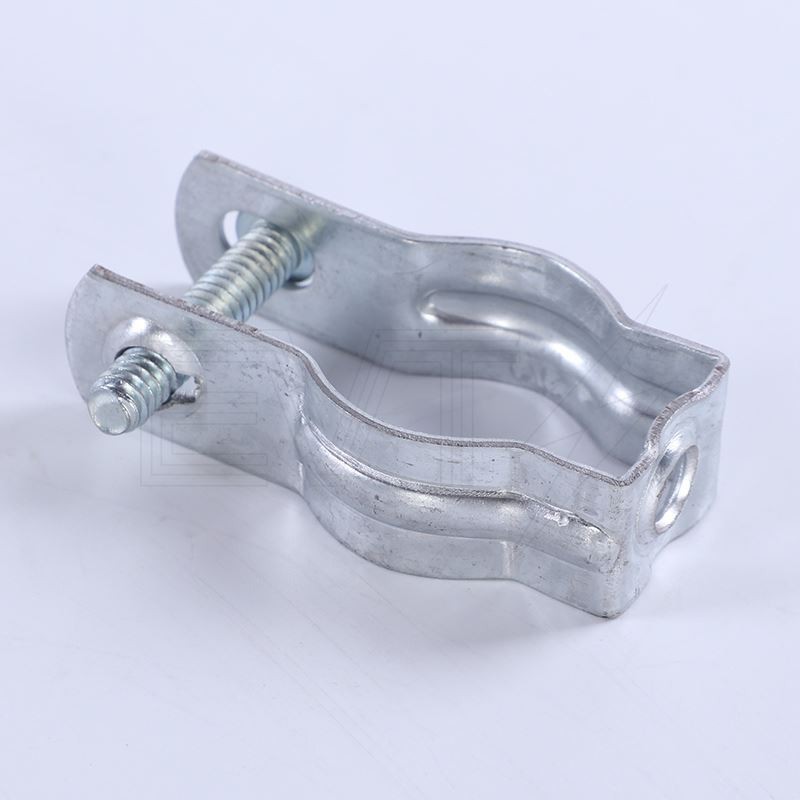

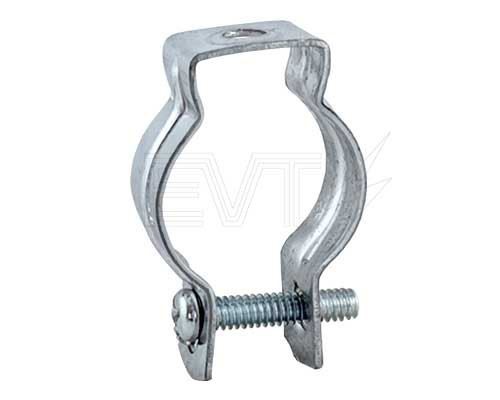

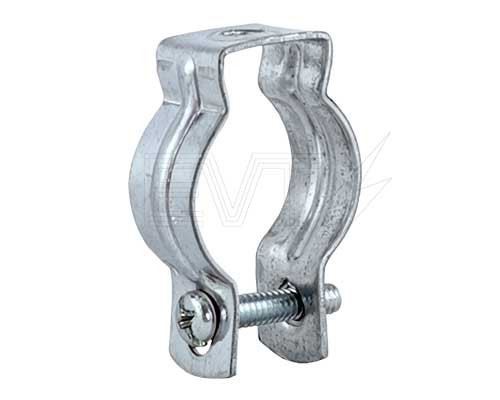

EVT abrazadera caddy is used to secure EMT, IMC and rigid conduit to some type of support using the hole on top of the hanger.
Product Introduction
◆ Application Type: EMT / IMC / RMC to IEC 61386 Standard
◆ Material: Steel
◆ Finish: Galvanized
◆ Trade Size: 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm and 110mm
◆ UL File Number: NIL
Product Details
EVT abrazadera caddy is used to secure EMT, IMC and rigid conduit to some type of support using the hole on top of the hanger. Typically, the conduit is suspended from channel profile using a threaded rod.
The EMT conduit hanger clamp is manufactured according to safety standard IEC 61386.
The conduit hanger is constructed from zinc-plated steel that resists corrosion.

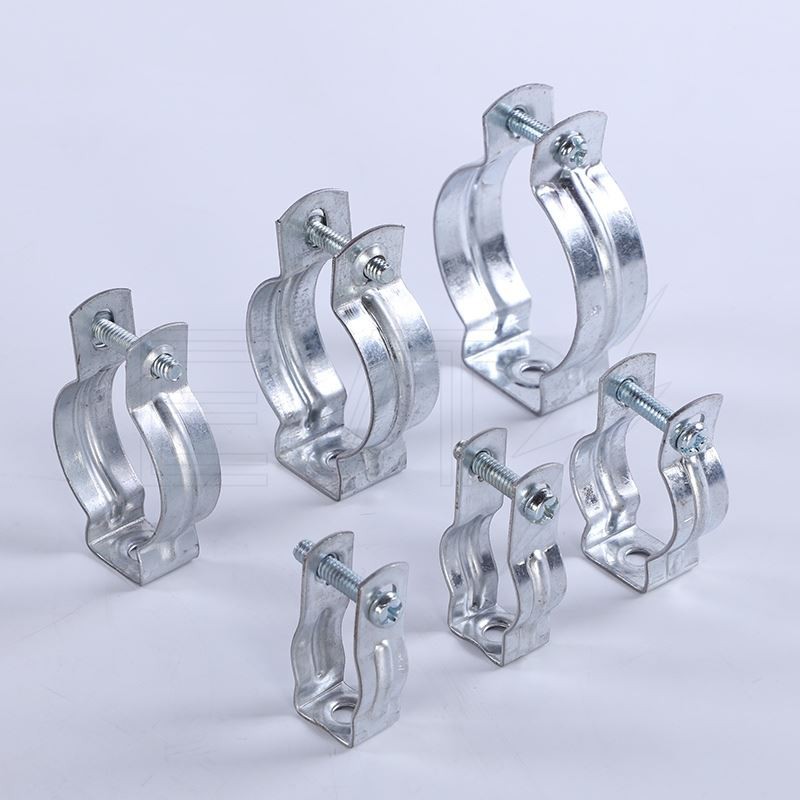

Steel conduit hanger is available in trade sizes 20mm through 110mm.
Reference and Packing
EVT# | Trade Size | Packing QTY |
220 | 20mm | 400 |
221 | 25mm | 400 |
222 | 32mm | 300 |
223 | 40mm | 300 |
224 | 50mm | 50 |
225 | 63mm | 50 |
226 | 75mm | 50 |
227 | 90mm | 25 |
228 | 110mm | 10 |
